Applications :

• Single Core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0
• BS 6387

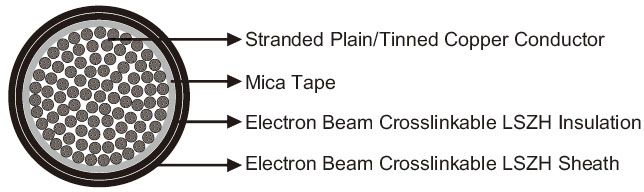

Construction :

• Conductors : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
• Flame Barrier : Mica tape.
• Insulation : Electron beam crosslinkable medium wall LSZH compound.
• Sheath : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	1.0	1.5	2.5	4.0	6.0	10	16
  Maximum Conductor Resistance	Ω/km	20.0	13.7	8.21	5.09	3.39	1.95	1.24
  Voltage Rating	KV	1.8/3

• Nominal Conductor Cross Section	mm²	25	35	50	70	95	150
  Maximum Conductor Resistance	Ω/km	0.795	0.565	0.393	0.277	0.21	0.132
  Voltage Rating	KV	1.8/3

Mechanical and Thermal Properties :

• Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm).
• Temperature Range : -40°C to +120°C.

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No. x AWG	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-MW-3S-FR-1G1.5	1×1.5	30/0.25	0.8	3.7	26
FRA-MW-3S-FR-1G2.5	1×2.5	50/0.25	0.75	3.95	35
FRA-MW-3S-FR-1G4	1×4	56/0.3	0.95	4.95	55
FRA-MW-3S-FR-1G6	1×6	84/0.3	0.90	5.35	75
FRA-MW-3S-FR-1G10	1×10	80/0.4	1.05	6.80	130
FRA-MW-3S-FR-1G16	1×16	126/0.4	1.20	8.60	190
FRA-MW-3S-FR-1G25	1×25	196/0.4	1.35	10.2	280
FRA-MW-3S-FR-1G35	1×35	276/0.4	1.55	11.7	390
FRA-MW-3S-FR-1G50	1×50	396/0.4	1.85	13.8	550
FRA-MW-3S-FR-1G70	1×70	360/0.5	1.70	15.8	720
FRA-MW-3S-FR-1G95	1×95	475/0.5	1.90	17.6	960
FRA-MW-3S-FR-1G120	1×120		1.95	20.2	1180







Impact Resistant	Highly Flexible	UV Resistant	Oil Resistant	Weather Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
